Mold Inner Diameter Measurement
Applications for Pla...Description

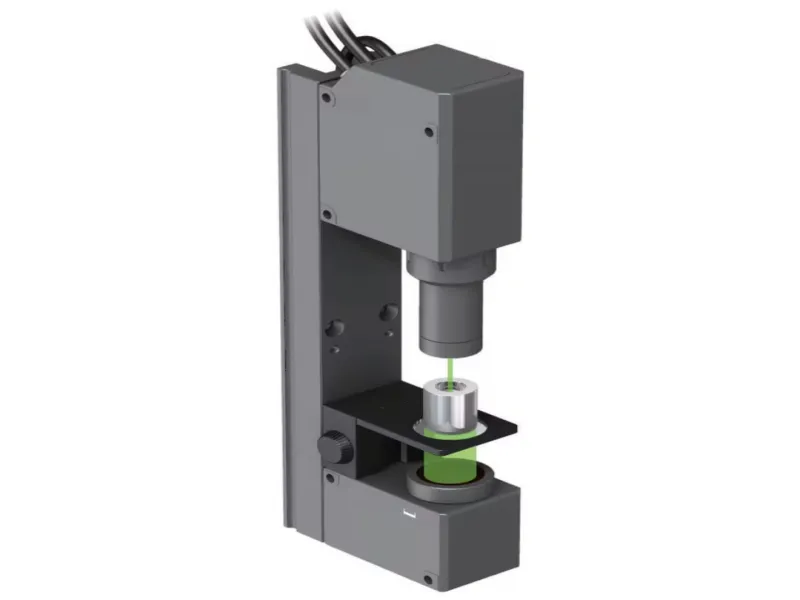

High Speed ​​2D Optical Micrometer is used to measure the inner diameter of molds used in wire drawing. This series measures the inner diameter of the X-axis or Y-axis of the projected silhouette. Inspection of the inner diameter after repeated polishing can now be carried out.
