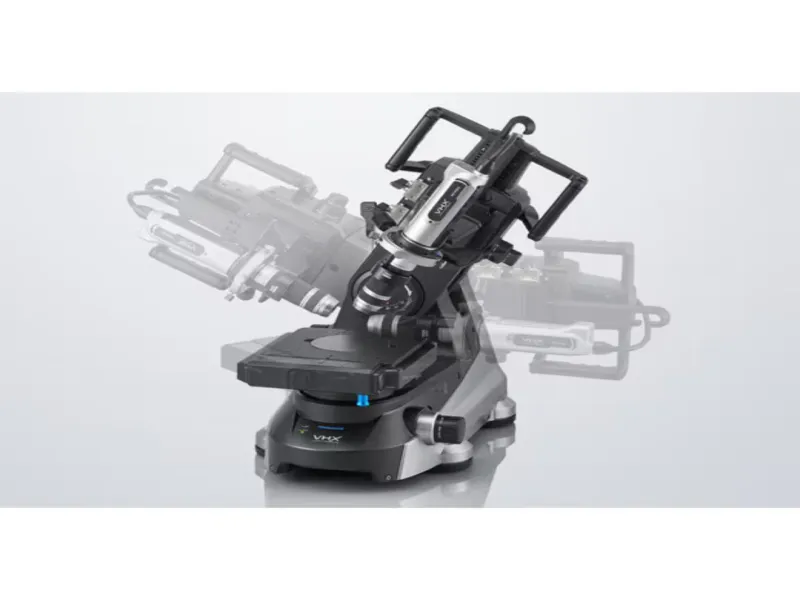

Oblique Observations and 3D Measurements on Microscopic Needles and Molds
Applications for Med...Description
Quick and easy oblique observations with high-accuracy 4K images are possible even when observing the 3D shape of microscopic pin prints.
Ring illumination (100×)
Coaxial lighting (500×) + 3D display and profile measurement
Actions
Share
Related Products

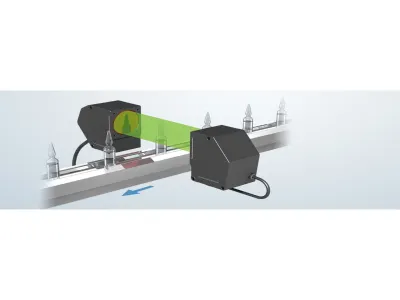

Inspection of Ampoules and Small Vials
<p>Typically, the shape of transparent objects such as ampoules has been done using a vision system. However, this requires time-intensive calibration after replacement or other maintenance. The High Speed ​​2D Optical Micrometer offers a pre-calibrated solution for traceable measurements, which significantly reduces downtime due to adjustments.

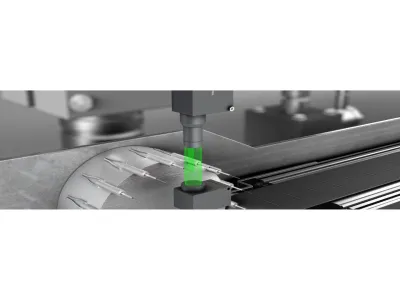

Needle Tip Measurement
<p>Needle tip profiles can be checked 100% for exact diameter and length. High Speed ​​2D Optical Micrometer is calibrated to international standards so it provides accurate and traceable product measurements. The telecentric measurement system provides a large depth of focus so that stable inline measurements can be made even if the target position changes relative to the sensor.</p><p><img src="https://www.keyence.co.id/img/application/86894.jpg"></p>

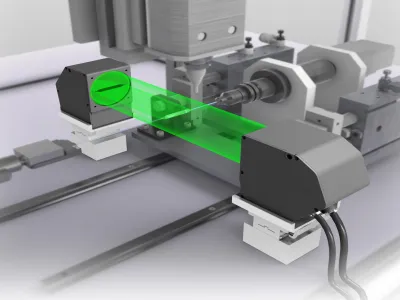

Balloon Shape and Maximum Diameter Measurement
<p>The shape of the balloon can be measured during inflation using a High Speed ​​2D Optical Micrometer. Previously, balloon shapes, such as outer diameter and angles, could only be measured offline using optical comparators. The High Speed ​​2D Optical Micrometer offers high-speed measurements, providing access to real-time process data for 100% inline testing or inspection.</p><p><img src="https://www.keyence.co.id/img/application/86891.jpg"></p>
