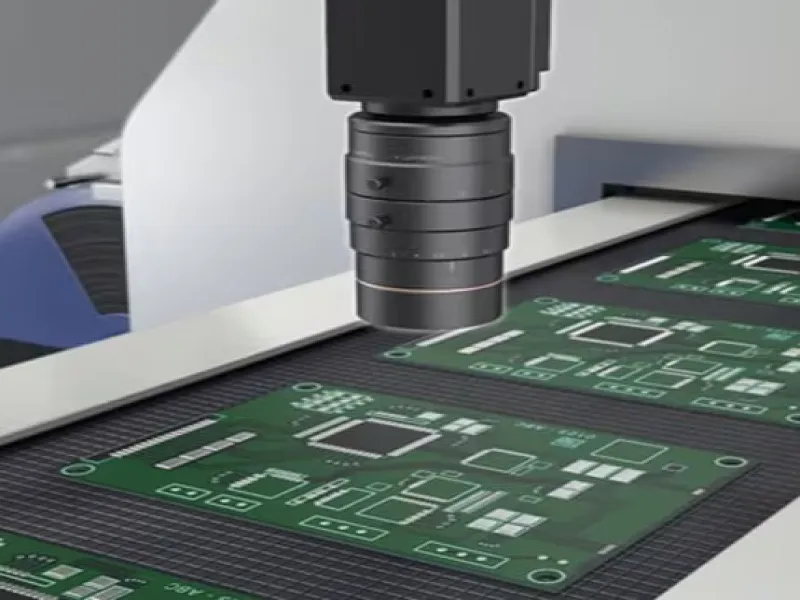

Character Identification on PCB
Applications for Sem...Description
With high pixel machine vision, the entire PCB can be captured in the field of view. This step allows simultaneous inspection to measure the pitch of connectors and other items, as well as recognize/assess 2D character and code information. src="https://www.keyence.co.id/img/application/90631.jpg">
Actions
Share
Related Products
Power Semiconductor Wire Inspection
<p>The use of high-resolution cameras ensures greater clarity when examining cable details.</p>
OCR with Electronic PCB
<p>While marking inspections with conventional systems means capturing separate images, processing time can be increased by capturing the entire field of view at once with a high pixel camera.</p><p><img src="https://www.keyence.co.id/img/application/90634.jpg"></p>
Product Type Differentiation or 2D Identification of IC Packages
<p>Reads 2D characters/codes marked with a laser on the surface of the IC chip. A single machine vision can recognize both characters, such as part numbers and 2D codes simultaneously.</p><p style="text-align: center;"><strong>OK</strong></p><p><img src="https://www.keyence.co.id/img/application/90600.jpg"></p><p style="text-align: center;"><strong>NG</strong></p><p><img src="https://www.keyence.co.id/img/application/90601.jpg"></p>
