Products in Applications for Electronic Devices
(35
products)
Searching products...

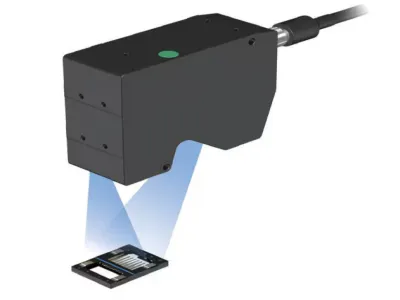

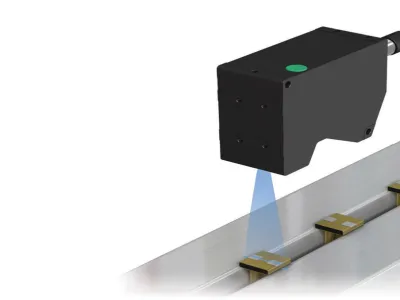

Terminal Coplanarity Measurement
Previously, vision systems were the main tool for measuring coplanarity. If increasingly complex connector types make measurements with a vision syste...
When an inspection is performed using a vision system, OK/NG status is determined by area. The High Speed 2D Laser Profiler enables measurement of c...

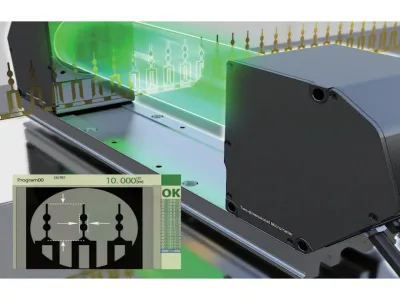

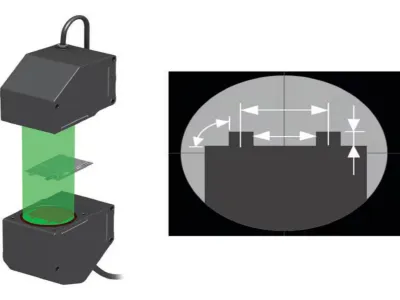

Post-pressing inspection of terminal component dimensions
This system checks the dimensions of terminal components immediately after punching. They detect pressing errors immediately after they occur so throu...
The electrode terminals (double wire) are measured directly after welding so any misalignment can be easily detected. Height and tilt defects, as well...
Previously, examinations were performed using vision systems, but light alignment and adjustment posed problems for this approach. High Speed 2D Las...

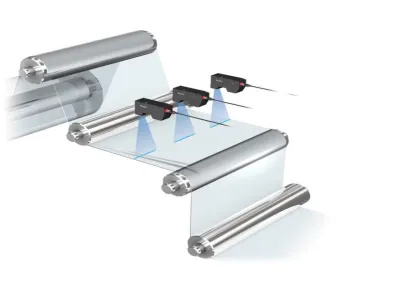

Each sensor head has a maximum measuring width of 240 mm. By using three sensor heads, wrinkle detection can also be carried out on films with a width...
Previously, inspection was carried out using spot-type/focal-type sensors, but this process was time-consuming because it involved moving the workpiec...

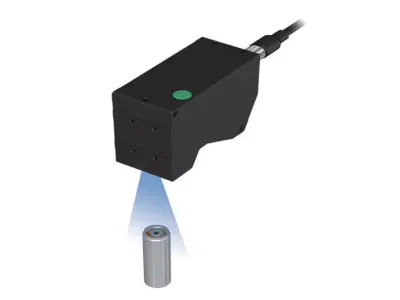

Seal components are checked to ensure they are installed correctly. Stable inspection regardless of target color can be performed to check for factors...
Conventionally, one-dimensional laser displacement sensors are used so that profile variations can only be read as “dots”. The High Speed 2D Laser P...

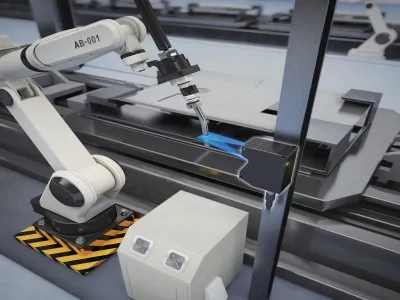

Conventional one-dimensional laser displacement sensors suffer from measurement point variation problems for horizontal vibrations. High Speed 2D La...

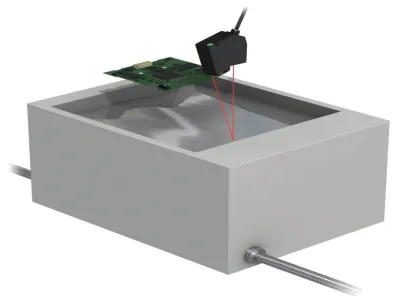

Measurement of Liquid Surface Height in Solder Pot
The light quantity feedback used by the Ultra High Speed Laser Displacement Sensor provides an effective solution for measuring the height of a liqu...

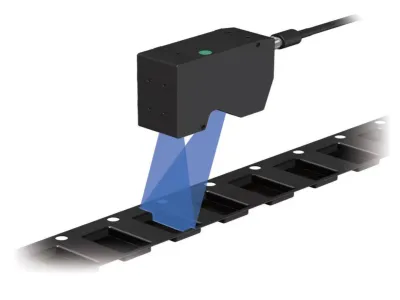

As chips become smaller and lower in profile, dimensional standards for carrier ribbons become more stringent. High Speed 2D Laser Profiler enables...
